    All-5 DC Barrel Type Service Equipment

    All-5 Series Products Are Piston-Type Pumps Produced for Lubrication Purposes.

    The displacement of the pump

    There is no lubricant store in the pump system.

    Standard Grease Barrels Can Be Used as A Reservoir.

    Pump Systems Dive Lengths Can Be Produced for Different Barrel Volumes.

    All-5 Pumps Are Produced with 3 Different Sizes Grease Piston Options.

    Each piston Gives a Different Amount of Grease and Pressure Value to the Pump Output.

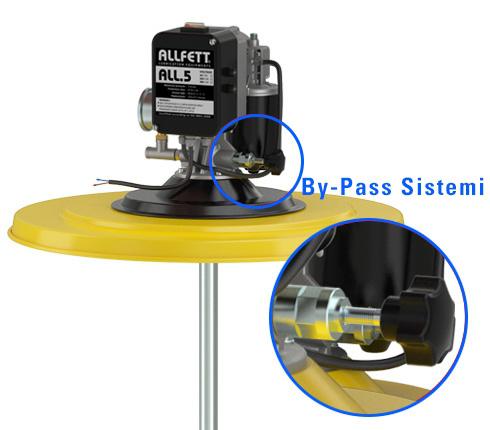

    All-5 Pumps Can Be Selected from 2 Main Operations Operating With Pressure Switch OR BY-PASS SYSTEM.

    ATTENTION:All5 Pumps Are Produced Only For Lubrification Purposes, So it is not appopriate to operate the pump for more than 5 minutes.

    Working Temperature -25 ° ...+80 ° C
    Protection Class IP54
    Motor Type 24 VDC
    Max.pressure (Ø12 - Ø16 piston) 180 bar., (Ø20 piston) 150 bar.
    Oil Class NLGI 00 (-30 ° C TO -10 ° C), NLGI 0 (0 ° C TO 0 ° C), NLGI 1 (0 ° C TO 10 ° C)
    PUMP ELEMENT Displacement (Ø12 piston) 140 cm³/minute, (Ø16 piston) 250 cm³/minute, (Ø20 piston) 390 cm³/minute
