GL100 Potentiometer

GL100 Potentiometer

GL100 Potentiometer

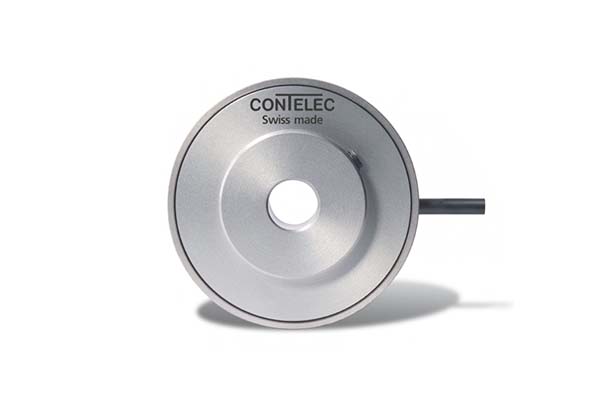

Contlec GL100 Potenttiomers;Full Hole (Hollow) Are Industrial Angle Sensors That Work

The GL100 Potentiomers Are Infinite Rents, There Are No Points of Restaurant.

10 mm (Ø 10) Hole Diameter is Availble.

Electrical Measurement Angle has 45 ° - 150 ° - 354 ° options.

GL100 Rotary Potentiomers have ± 0.25% linearity.

It has 5 Million Movement Life.

Textile Machines Are Frequently Used in Blood Pressure and Tension Controls in Packaging and Packaging Machines.

Working Temperature -25… +75 ° C
Protection Class IP63
Nominal Resistance 5/10 kohm
Resistance tolerance ± 20%
Electrical Angle 150/340 °
Recommended Contact Current 1 µA max.
Power Ratio 0.5 W/40 ° C max.
Minimum Life (Electrical) 10 Million RevolutionS
Mechanical Range 348 °
Torque 15 ncm max.
Minimum Life (Mechanical) 5 Million Revolutions
Linearity ± 0.25%
Recurrenceness 0.1 ° max.
