GL300 POTENTIOMERER

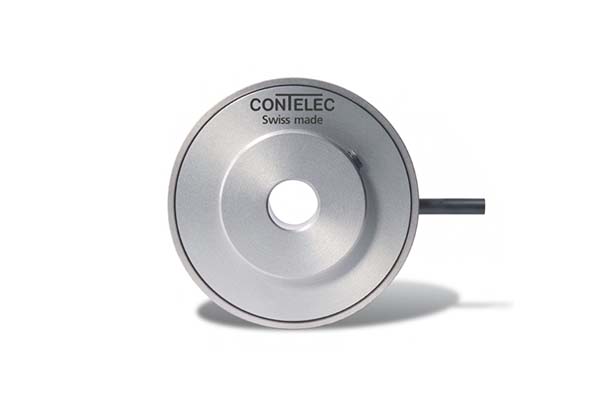

Contlec GL300 Potenttiometer;

PDF

Whatsapp

GL300 POTENTIOMERER

Contlec GL300 Potenttiomers;

The GL300 Potentiomers Are Infinite Rents, Do Not HAVE Points.

The GL300 Potentiomers Are Infinite Rents, Do Not HAVE Points.

Electrical Measurement Angle has 45 ° - 150 ° - 354 ° options.

GL300 Rotary Potentiomers have ± 0.25% linearity.

It has 5 Million Movement Life.

Textile Machines Are Frequently Used in Blood Pressure and Tension Controls in Packaging and Packaging Machines.

Working Temperature -25… +75 ° C
Protection Class IP63
Nominal Resistance 5/10 kohm
Resistance tolerance ± 20%
Electrical Angle Electrical Angle
Recommended Contact Current 1 µA max.
Power Ratio 0.5 W/40 ° C max.
Minimum Life (Electrical) 10 Million RevolutionS
Mechanical Range 348 °
Torque 6 ncm max
Minimum Life (Mechanical) 5 Million Revolutions
Linearity ± 0.25%
Recurrenceness 0.1 ° max.
