GL400 POTENTIOMERER

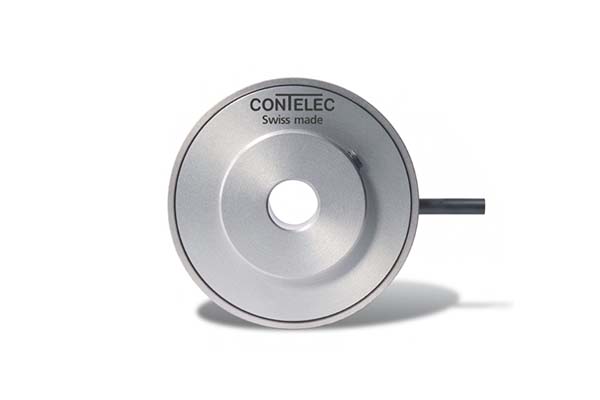

Contalec GL 400 Potentiometer;

PDF

Whatsapp

GL400 POTENTIOMERER

Contlec GL400 Potenttiomers;Full Hole (Hollow) Are Industrial Angle Sensors That Work

GL400 Potentiomers Are Infinite Rents, Do Not Contain Points.

GL400 Potentiomers Are Infinite Rents, Do Not Contain Points.

Electrical Measurement Angle has 45 ° - 150 ° - 354 ° options.

GL400 Rotary Potentiomers have ± 0.25% linearity.

It has 5 Million Movement Life.

Textile Machines Are Frequently Used in Blood Pressure and Tension Controls in Packaging and Packaging Machines.

Working Temperature -25… +75 ° C
Protection Class IP63
Nominal Resistance 5/10 kohm
Resistance tolerance ± 20%
± 20% 150/340 °
Recommended Contact Current 1 µA max.
Power Ratio 0.5 W/40 ° C max.
Minimum Life (Electrical) 10 Million RevolutionS
Mechanical Range 350 °
Torque 15 ncm max.
Minimum Life (Mechanical) Minimum Life (Mechanical)
Linearity ± 0.25%
Recurrenceness 0.1 ° max.
