GL500 POTENTIOMERER

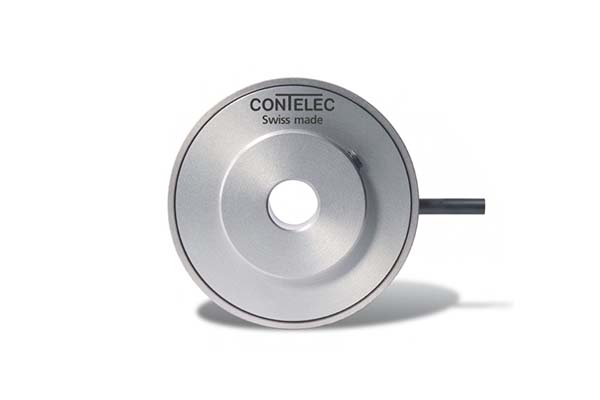

Contlec GL500 Potenttiomers;

The GL500 Potentiomers Are Infinite Rents, Do Not Contain Points.

The GL500 Potentiomers Are Infinite Rents, Do Not Contain Points.

Electrical Measurement Angle has 45 ° - 150 ° - 354 ° options.

GL500 Rotary Potentiomers have ± 0.25% linearity.

It has 5 Million Movement Life.

It has 5 Million Movement Life.

Working Temperature -25… +75 ° C
-25… +75 ° C IP63
Nominal Resistance 5/10 kohm
Resistance tolerance ± 20%
Electrical Angle 150/340 °
Recommended Contact Current 1 µA max.
1 µA max. Power Ratio
Minimum Life (Electrical) 10 Million RevolutionS
10 Million RevolutionS 350 °
Torque 15 ncm max.
Minimum Life (Mechanical) 5 Million Revolutions
Linearity ± 0.25%
Recurrenceness 0.1 ° max.
