PL340 Series Rotary Potentiometer

PL340 Series Rotary Potentiometer

PDF

Whatsapp

PL310 Rotary Potentiometer, Rotary Potentiometer, Industrial Potentiometer, Sensitive Control Potentiometer, PL310 potentiometer properties, durable rotary potentiometer, long -lasting potentiometer, automation potentiometer, potentiometer prices, industrial automation solutions, PL310 series potentiometer, high -sensitive design, modern potential design.Potentiometer, reliable control device, professional potentiometer,

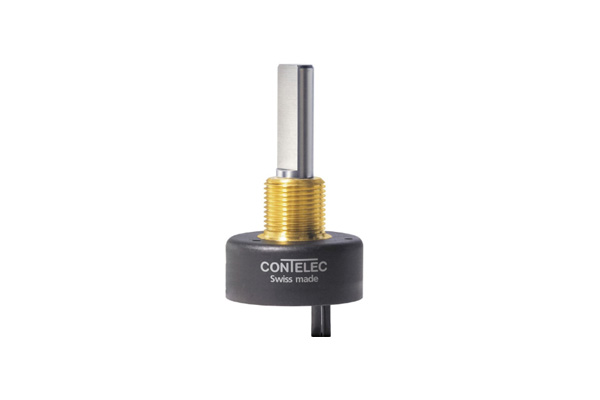

The PL340 series Rotary Potentiometer is a shaft potentiometer for angular measurement.

There is a 6.35 mm shaft diameter.

It has an electrical measurement angle up to 340 °.

High resolution value is: 0.1 °.

Cable electrical connection can be made.

High linearite value is 1 %.

It is produced in high quality standards in Switzerland.

Working temperature -25 ... +85 ° C
Protection class IP54
Nominal resistance 1/5/10 Kohm
Resistance tolerance ± 20%
Electrical angle 340 °
Recommended contact current 1 µA max.
Power ratio 0.5 W/40 ° C max.
Minimum Life (Electrical) 10 million revolutions
Mechanical range 360 °
Torque 0.7 ncm max.
Minimum life (mechanical) 5 million revolutions
Shaft load 1 n
Linearity ± 1%
Recurrenceness 0.1 ° max.
